| Electrical Specifications |
| STC: Irradiance 1000W/m2, Cell Temperature 25° C, AM=1.5 |
| Rated output (Pmpp / Wp) |
550 |
| Rated voltage (Vmpp / V) |
42.27 |
| Rated current (Impp /A) |
13.01 |
| Open circuit voltage (Voc / V) |
50.30 |
| Short circuit current (Isc /A) |
13.84 |
| Module efficiency |
21.3% |
| NMOT: Irradiance 800W/m2, Ambient Temperature 20° C, AM=1.5, Wind Speed 1m/s |
| Rated output (Pmpp / Wp) |
411.0 |
| Rated voltage (Vmpp / V) |
39.39 |
| Rated current (Impp /A) |
10.43 |
| Open circuit voltage (Voc / V) |
47.53 |
| Short circuit current (Isc /A) |
11.23 |
| Electrical Specifications (Integrated power) |
| Pmpp gain |
Pmpp / Wp |
Vmpp / V |
Impp / A |
Voc / V |
Isc / A |
| 5% |
578 |
42.27 |
13.66 |
50.30 |
14.53 |
| 10% |
605 |
42.27 |
14.31 |
50.30 |
15.22 |
| 15% |
633 |
42.27 |
14.96 |
50.30 |
15.92 |
| 20% |
660 |
42.27 |
15.61 |
50.30 |
16.61 |
| 25% |
688 |
42.27 |
16.26 |
50.30 |
17.30 |
| Electrical characteristics with different rear power gain (reference to 550W) |
| Temperature Ratings (STC) |
| Temperature coefficient (Pmpp) |
-0.34%/℃ |
| Temperature coefficient (Isc) |
+0.04%/℃ |
| Temperature coefficient (Voc) |
-0.25%/℃ |
| Nominal module operating temperature (NMOT) |
41±2℃ |
| Operating Parameters |
| No. of diodes |
3 |
| Junction box IP rating |
IP 68 |
| Max. series fuse rating |
30 A |
| Max. system voltage (IEC/UL) |
1500VDC |
| Mechanical Specifications |
| Outer dimensions (L x W x H) |
2278 x 1134 x 30 mm |
| Cell type |
P type mono-crystalline |
| No. of cells |
144 (6*24) |
| Frame technology |
Aluminum, silver anodized |

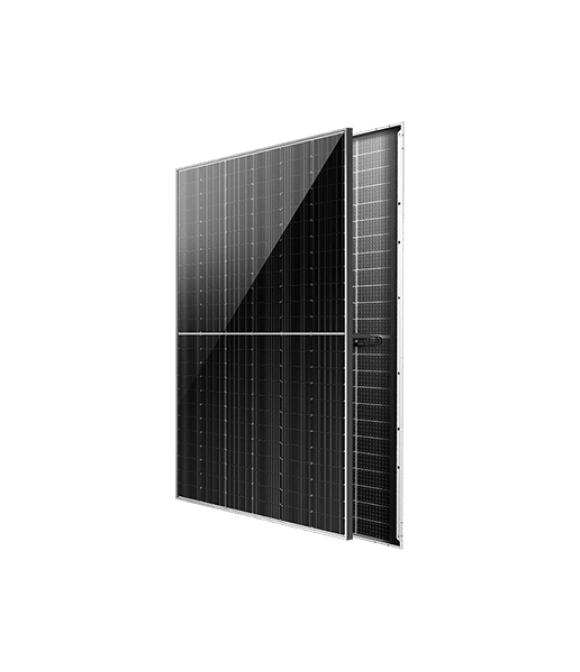

| Front / Back glass |
2.0+2.0 mm |
| Cable length (Including connector) |
Portrait: ( + )350 mm,( – )250 mm；
Customized length |
| Cable diameter (IEC/UL) |
4 mm² / 12 AWG |
| ① Maximum mechanical test load |
5400 Pa (front) / 2400 Pa (back) |
| Connector type (IEC/UL) |
HCB40 (Standard) / MC4-EVO2A (Optional) |
| Module weight |
32.1 kg |
| Packing unit |
36 pcs / box |
Weight of packing unit (for 40’HQ
container) |
1207 kg |
| Modules per 40′ HQ container |
720 pcs (Subject to sales contract) |
① Refer to Astronergy crystalline installation manual or contact technical department.
Maximum Mechanical Test Load=1.5×Maximum Mechanical Design Load. |
